Digital ADAS 2.0

Artificial Intelligence at the Service of ADAS Calibration

Thanks to the CONNEX Digital ADAS line, every workshop can easily perform ADAS systems maintenance. Thanks to the powerful Keystone system, to the vehicle recognition through license plate reading, and to the fully automatic measurement, you will complete your calibration in just a few minutes.

CONNEX Digital ADAS 2.0

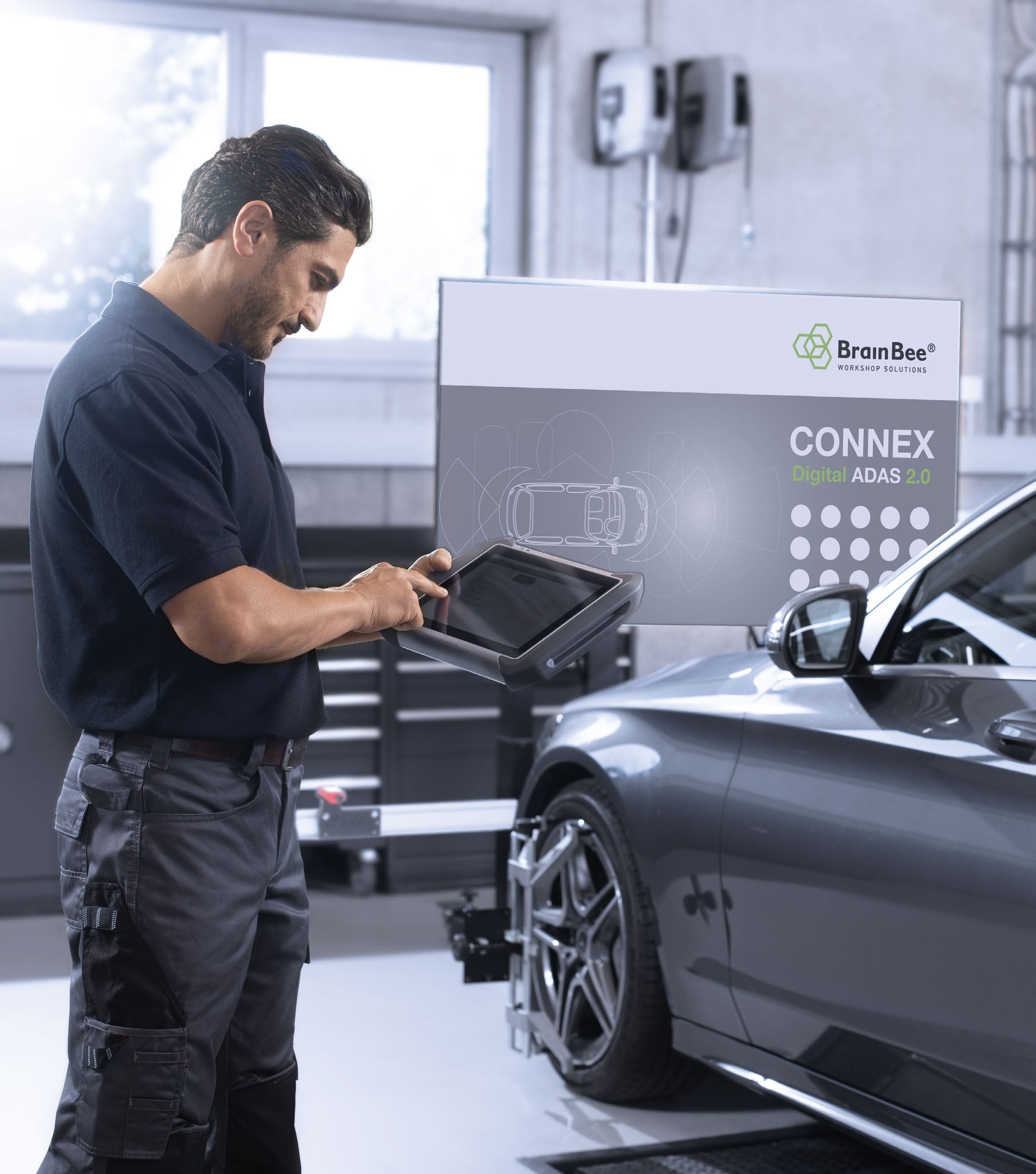

The identification of model and control unit of ADAS systems mounted on vehicles has never been so quick! Thanks to the license plate recognition function (*), and to the help of a special camera, the instrument is able to immediately recognize the systems to be calibrated. No indecision or waste of time: just a click!

(*) Optional function, available in the markets where SKIP CONNEX is active.

Fully automatic calibration in the blink of an eye

It seemed impossible before, but the Digital ADAS 2.0 evolution cuts calibration time even further! Thanks to special laser meters directly connected to the diagnostic tool, CONNEX Digital ADAS 2.0 can directly acquire all the parameters related to the vehicle alignment, which are transmitted to CONNEX, allowing you to execute the calibration immediately. Even the vertical positioning of the monitor is automatically handled from the diagnostic interface display, through a simple command which allows to reach the correct position, according to manufacturer specifications.

3D tutorials to get it right

Each car manufacturer has its own specific calibration procedures that the operator must perform to complete the adjustment. With Digital ADAS 2.0, you won’t have any uncertainty! From the diagnostic tool, you can play clear 3D video tutorials, which are directly shown on the Digital ADAS 2.0 display, showing all procedure steps.

Fully automatic calibration in the blink of an eye

It seemed impossible before, but the Digital ADAS 2.0 evolution cuts calibration time even further! Thanks to special laser meters directly connected to the diagnostic tool, CONNEX Digital ADAS 2.0 can directly acquire all the parameters related to the vehicle alignment, which are transmitted to CONNEX, allowing you to execute the calibration immediately. Even the vertical positioning of the monitor is automatically handled from the diagnostic interface display, through a simple command which allows to reach the correct position, according to manufacturer specifications.

3D tutorials to get it right

Each car manufacturer has its own specific calibration procedures that the operator must perform to complete the adjustment. With Digital ADAS 2.0, you won’t have any uncertainty! From the diagnostic tool, you can play clear 3D video tutorials, which are directly shown on the Digital ADAS 2.0 display, showing all procedure steps.
The basic version of the line, for camera and radar calibration:

WIFI CONNECTION, ensures systems and calibration procedures are always up to date
Keystone technology((Patent pending) for maximum accuracy
Targetless

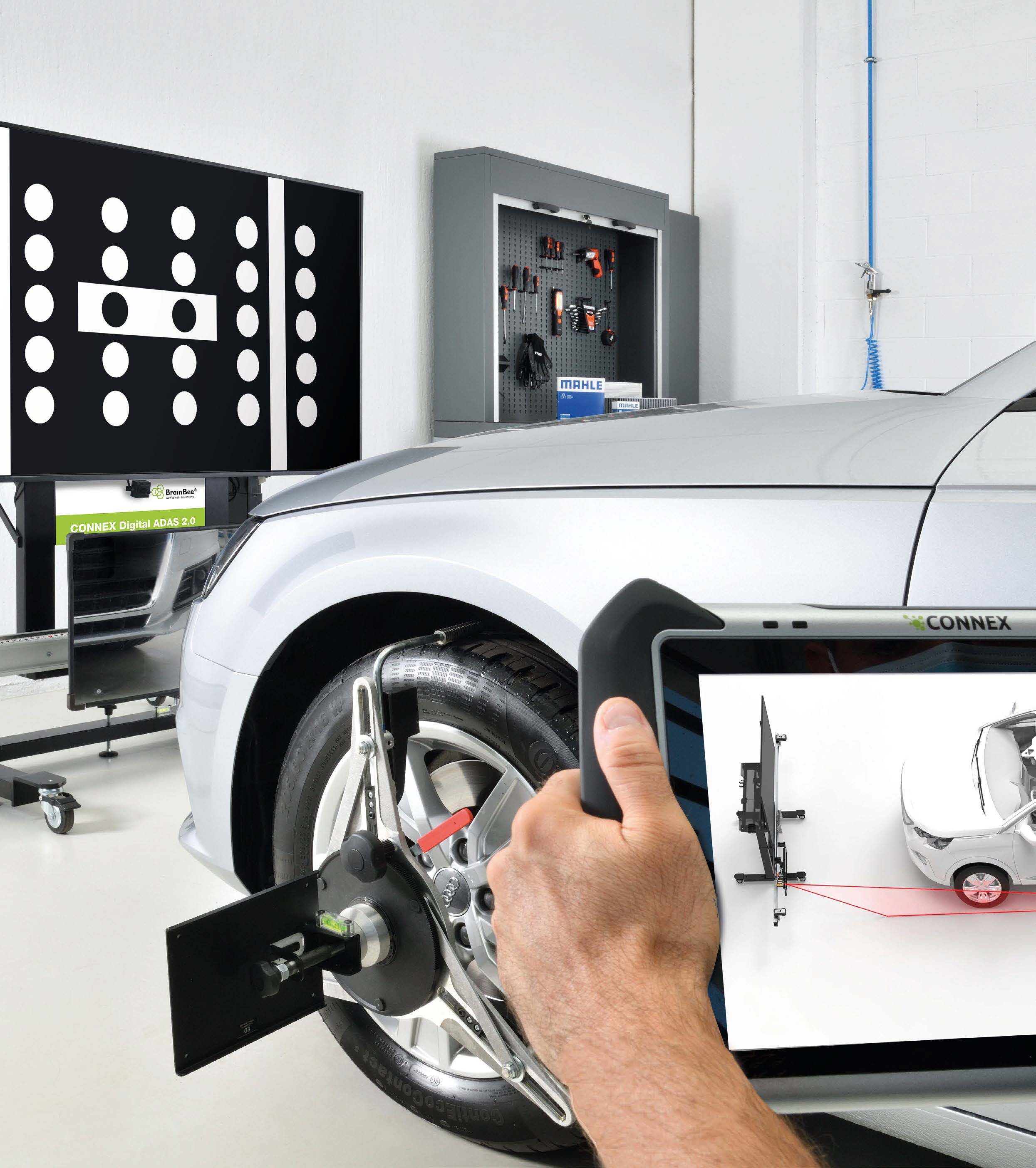

Digital laser distance meters
Automated vertical monitor alignment (electric control)
Double clamp system
Fully automatic camera and radar calibration:

WIFI CONNECTION, ensures systems and calibration procedures are always up to date
Keystone technology (Patent pending) for maximum accuracy
Targetless
Visual license plate recognition function
Automatic data transfer laser distance meters (by software)
Fully automatic vertical monitor alignment
Double clamp system

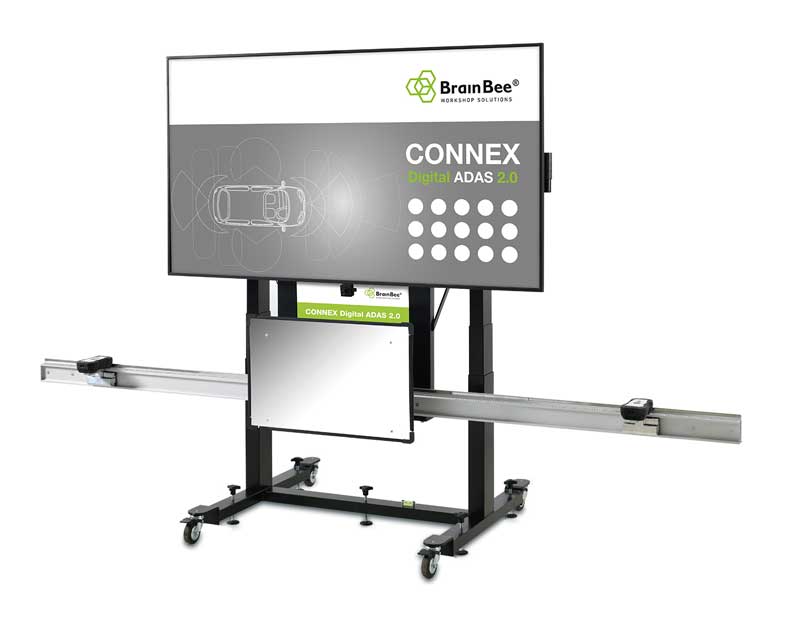

  • Patented TARGETLESS technology
  • Integrated communication with NEXUS 3.0 BUS system via WiFi
  • Motorized target height adjustment
  • Adaptive system for automatic compensation of vehicle positioning
  • Measurement via high precision laser distance meters
  • Ultralight radar calibration panel
  • 65” full HD monitor
  • Integrated control PC, Windows 10
  • Dimensions: 3000 x 1500 x 1800 mm
  • Weight: 75 kg
